LX
1.6L-T Petrol 2WD
$43,990 +ORC
|
LIGHT HEV
1.6L-T HYBRID 2WD
$49,990 +ORC
|
LIGHT HEV
1.6L-T HYBRID AWD
$54,990 +ORC
|
EARTH HEV
1.6L-T HYBRID 2WD
$54,990 +ORC
|
EARTH HEV
1.6L-T HYBRID AWD
$59,990 +ORC
|
X-LINE HEV
1.6L-T HYBRID 2WD
$59,990 +ORC
|
X-LINE HEV
1.6L-T HYBRID AWD
$64,990 +ORC
|
Engine Type |
1.6T-GDi (In-Line 4 Cyl. Turbo Petrol)
|
1.6T-GDi (In-Line 4 CVl. Turbo Petrol)
|
1.6T-GDi (In-Line 4 CVl. Turbo Petrol)
|
1.6T-GDi (In-Line 4 CVl. Turbo Petrol)
|
1.6T-GDi (In-Line 4 CVl. Turbo Petrol)
|
1.6T-GDi (In-Line 4 CVl. Turbo Petrol)
|
1.6T-GDi (In-Line 4 CVl. Turbo Petrol)
|
1.6T-GDi (In-Line 4 CVl. Turbo Petrol)
|
1.6T-GDi (In-Line 4 CVl. Turbo Petrol)
|
1.6T-GDi (In-Line 4 CVl. Turbo Petrol)
|
1.6T-GDi (In-Line 4 CVl. Turbo Petrol)
|
Displacement |
1,598 cc
|
1.598 cc
|
1.598 cc
|
1.598 cc
|
1.598 cc
|
1.598 cc
|
1.598 cc
|
Compression Ratio |
10.5:1
|
10.5 : 1
|
10.5 : 1
|
10.5 : 1
|
10.5 : 1
|
10.5 : 1
|
10.5 : 1
|
Maximum Power |
132 kW @ 5,500 rpm
|
132 kW @ 5,500 rpm
|
132 kW @ 5,500 rpm
|
132 kW @ 5,500 rpm
|
132 kW @ 5,500 rpm
|
132 kW @ 5,500 rpm
|
132 kW @ 5,500 rpm
|
Maximum Torque |
265 Nm @ 1,500 - 4,500 rpm
|
265 Nm @ 1,500 - 4,500 rpm
|
265 Nm @ 1,500 - 4,500 rpm
|
265 Nm @ 1,500 - 4,500 rpm
|
265 Nm @ 1,500 - 4,500 rpm
|
265 Nm @ 1,500 - 4,500 rpm
|
265 Nm @ 1,500 - 4,500 rpm
|
Electric Motor Type |
-
|
Permanent Magnet Synchronous Motor (PMSM)
|
Permanent Magnet Synchronous Motor (PMSM)
|
Permanent Magnet Synchronous Motor (PMSM)
|
Permanent Magnet Synchronous Motor (PMSM)
|
Permanent Magnet Synchronous Motor (PMSM)
|
Permanent Magnet Synchronous Motor (PMSM)
|
Maximum Power (Electric Motor Only) |
-
|
44 kW @ 1,600 - 2,000 rpm
|
44 kW @ 1,600 - 2,000 rpm
|
44 kW @ 1,600 - 2,000 rpm
|
44 kW @ 1,600 - 2,000 rpm
|
44 kW @ 1,600 - 2,000 rpm
|
44 kW @ 1,600 - 2,000 rpm
|
Battery Type |
-
|
Lithium-lon
|
Lithium-lon
|
Lithium-lon
|
Lithium-lon
|
Lithium-lon
|
Lithium-lon
|
Battery Energy |
-
|
1.49 kWh
|
1.49 kWh
|
1.49 kWh
|
1.49 kWh
|
1.49 kWh
|
1.49 kWh
|
Combined System Maximum Power |
-
|
169 Kw
|
169 Kw
|
169 Kw
|
169 Kw
|
169 Kw
|
169 Kw
|
Combined System Maximum Torque |
-
|
350 Nm
|
350 Nm
|
350 Nm
|
350 Nm
|
350 Nm
|
350 Nm
|
Fuel Consumption - Combined 3P-WLTP |
8.1L /100km
|
5.4L /100km
|
5.9L /100km
|
5.4L /100km
|
5.9L /100km
|
5.4L /100km
|
5.9L /100km
|
CO2 Emissions - Combined 3P-WLTP |
184g / km
|
122g / km
|
134g / km
|
122g / km
|
134g / km
|
122g / km
|
134g / km
|
Gearbox |
8-Speed Automatic (8AT)
|
6-Speed Automatic (6AT)
|
6-Speed Automatic (6AT)
|
6-Speed Automatic (6AT)
|
6-Speed Automatic (6AT)
|
6-Speed Automatic (6AT)
|
6-Speed Automatic (6AT)
|
Shift Controller Type |
Conventional
|
E-Shift Dial (Shift-By-Wire)
|
E-Shift Dial (Shift-By-Wire)
|
E-Shift Dial (Shift-By-Wire)
|
E-Shift Dial (Shift-By-Wire)
|
E-Shift Dial (Shift-By-Wire)
|
E-Shift Dial (Shift-By-Wire)
|
E-Shift Dial (Shift-By-Wire)
|
Drivetrain |
Front Wheel Drive (2WD)
|
Front Wheel Drive (2WD)
|
All Wheel Drive (AWD)
|
Front Wheel Drive (2WD)
|
All Wheel Drive (AWD)
|
Front Wheel Drive (2WD)
|
All Wheel Drive (AWD)
|
Front Suspension |
McPherson Strut
|
McPherson Strut
|
McPherson Strut
|
McPherson Strut
|
McPherson Strut
|
McPherson Strut
|
McPherson Strut
|
Rear Suspension |
Multi-link
|
Multi-link
|
Multi-link
|
Multi-link
|
Multi-link
|
Multi-link
|
Multi-link
|
Tyres / Wheels |
235 / 65 R17
|
235 / 65 R17
|
235 / 65 R17
|
235 / 60 R18
|
235 / 60 R18
|
235 / 55 R19
|
235 / 55 R19
|
Wheel Size |

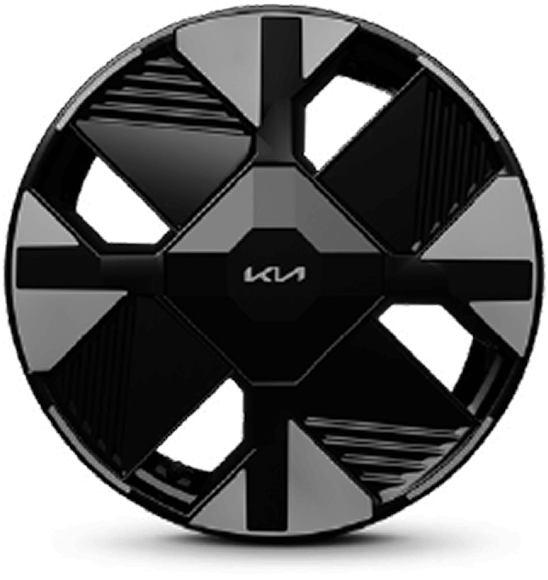

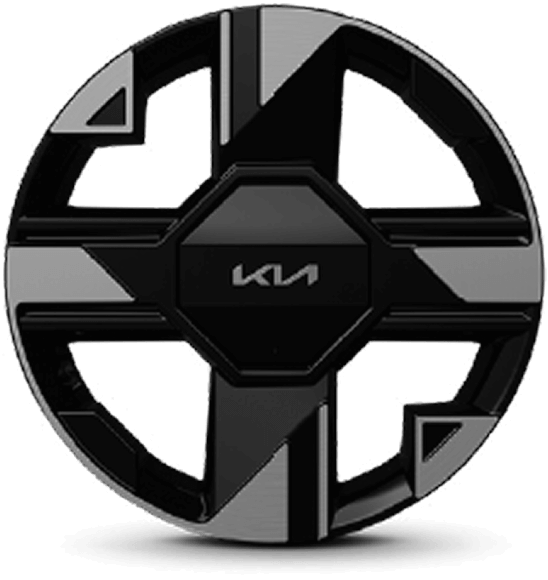

17" alloy
|
17" alloy
|
17" alloy
|

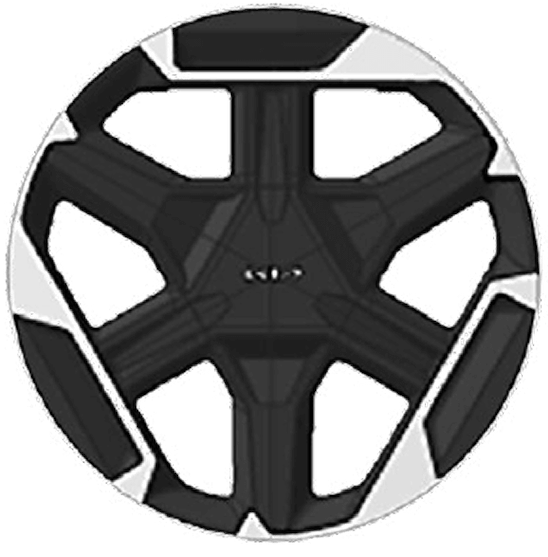

18" alloy
|
18" alloy
|

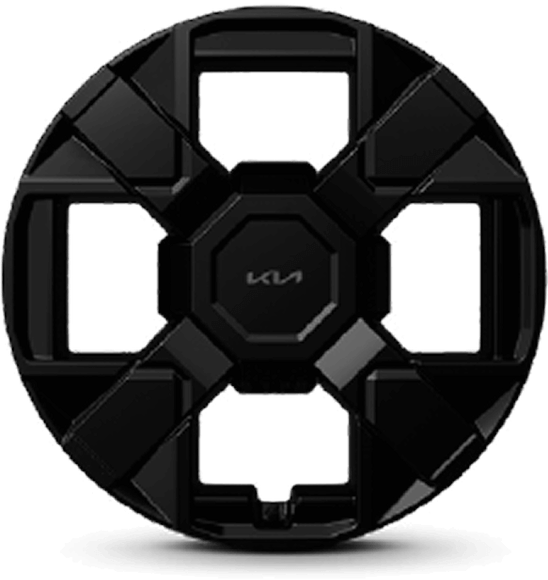

19" alloy
|
19" alloy
|
Tyre Pressure Monitoring System (TPMS) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Spare Wheel Type |
Full Size Alloy
|
Tyre Mobility Kit (TMK)
|
Tyre Mobility Kit (TMK)
|
Spacesaver Spare
|
Spacesaver Spare
|
Spacesaver Spare
|
Spacesaver Spare
|
Braking System |
Ventilated Front Discs & Solid Rear Discs
|
Ventilated Front Discs & Solid Rear Discs
|
Ventilated Front Discs & Solid Rear Discs
|
Ventilated Front Discs & Solid Rear Discs
|
Ventilated Front Discs & Solid Rear Discs
|
Ventilated Front Discs & Solid Rear Discs
|
Ventilated Front Discs & Solid Rear Discs
|
Electronic Parking Brake with Auto Hold |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Steering System |
Motor Driven Power Steering (C-MDPS)
|
Motor Driven Power Steering (C-MDPS)
|
Motor Driven Power Steering (C-MDPS)
|
Motor Driven Power Steering (C-MDPS)
|
Motor Driven Power Steering (C-MDPS)
|
Motor Driven Power Steering (C-MDPS)
|
Motor Driven Power Steering (C-MDPS)
|
Minimum Turning Radius |
5.89 m
|
5.89 m
|
5.89 m
|
5.89 m
|
5.89 m
|
5.89 m
|
5.89 m
|
Steering Wheel Adjustment |
Tilt & Telescopic
|
Tilt & Telescopic
|
Tilt & Telescopic
|
Tilt & Telescopic
|
Tilt & Telescopic
|
Tilt & Telescopic
|
Tilt & Telescopic
|
ANCAP Safety Rating |
ANCAP Rating TBC
|
ANCAP Rating TBC
|
ANCAP Rating TBC
|
ANCAP Rating TBC
|
ANCAP Rating TBC
|
ANCAP Rating TBC
|
ANCAP Rating TBC
|
Forward Collision Avoidance Assist (FCA) - Car, Pedestrian, Cyclist, Junction Assist |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Anti-Lock Braking System (ABS) and Electronic Stability Control (ESC) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Multi-Collision Brake (MCB) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Blind Spot Collision Avoidance Assist (BCA) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Blind Spot View Monitor (BVM) |
-
|
-
|
-
|
-
|
-
|
●
|
●
|
Rear Cross Traffic Collision Avoidance Assist (RCA) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
e-Call (SOS Call) Function |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Lane Keep Assist System (LKAS) with Line / Road Edge Dectection |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Lane Follow Assist 2 (LFA 2) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Parking Collision Avoidance Assist (PCA) - Reverse |
-
|
-
|
-
|
-
|
-
|
●
|
●
|
Driver Attention Alert |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Trailer Stability Assist (TSA) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Hill Start Assist Control (HAC) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Downhill Brake Control DRC) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
High Beam Assist (HBA) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Driver & Front Passenger Airbags |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Front Side Airbags |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Curtain Airbags |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Front Seat Centre-Side Airbag |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Front Seatbelt Pretensions with Load Limiters |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
3-Point ELR Seatbelts (All Seats) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Seatbelt Reminders (AII Seats) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Child Restraint Anchorage Points |
3 x Top Tether / 2 × ISOFIX
|
3 x Top Tether / 2 × ISOFIX
|
3 x Top Tether / 2 × ISOFIX
|
3 x Top Tether / 2 × ISOFIX
|
3 x Top Tether / 2 × ISOFIX
|
3 x Top Tether / 2 × ISOFIX
|
3 x Top Tether / 2 × ISOFIX
|
Rear Seat Occupant Alert (Basic Type) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Safe Exit Warning (SEW) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Manual Speed Limit Assist (MSLA) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Intelligent Speed Limit Assist (ISLA) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Speed Sensing Auto Door Lock |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Manual Child Safety Rear Door Locks |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Auto Dusk Sensing Headlights |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Engine Immobiliser |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Parking Sensors |
Front & Rear
|
Front & Rear
|
Front & Rear
|
Front & Rear
|
Front & Rear
|
Front / Rear / Side
|
Front / Rear / Side
|
Rearview Camera with Dynamic Guidelines |
●
|
●
|
●
|
●
|
●
|
-
|
-
|
Surround View Monitor with Dynamic Guidelines |
-
|
-
|
-
|
-
|
-
|
●
|
●
|
LED Front Headlights (MFR Type) |
●
|
●
|
●
|
●
|
●
|
-
|
-
|
LED Front Headlights (4 Cube Projection Type) |
-
|
-
|
-
|
-
|
-
|
●
|
●
|
LED Rear Combination Lights |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
LED Daytime Running Lights |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
LED Front Fog Lights |
-
|
-
|
-
|
●
|
●
|
●
|
●
|
LED High Mounted Stop Light |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Flush Roof Rails |
●
|
●
|
●
|
●
|
●
|
-
|
-
|
Glossy Black X-Line Roof Rails |
-
|
-
|
-
|
-
|
-
|
●
|
●
|
Electrically Adjustable & Folding, Heated Outside Mirrors |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Body Coloured Outside Door Handles & Mirror Cover |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Door Garnish Coating |
Silver Paint
|
Matt Chrome Coating
|
Matt Chrome Coating
|
Matt Chrome Coating
|
Matt Chrome Coating
|
Silver Paint
|
Silver Paint
|
Satin Finish Window Beltline |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Front & Rear Mudguards |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Panoramic Power Sunroof |
-
|
-
|
-
|
-
|
-
|
●
|
●
|
Acoustic Film (Windshield) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Solar Glass (Windshield & Front Door) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Privacy Glass (Rear Windows & Tailgate) |
-
|
-
|
-
|
●
|
●
|
●
|
●
|
Rear Wiper (Hidden Type) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Seating Configuration |
5 Seats
|
5 Seats
|
5 Seats
|
5 Seats
|
5 Seats
|
5 Seats
|
5 Seats
|
Interior Seat Trim |
Cloth
|
Cloth
|
Cloth
|
Composite Leather
|
Composite Leather
|
Composite Leather
|
Composite Leather
|
Composite Leather 2-Spoke Steering Wheel |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Heated Steering Wheel |
-
|
-
|
-
|
●
|
●
|
●
|
●
|
Paddle Shifters |
-
|
●
|
●
|
●
|
●
|
●
|
●
|
6-way Manual Driver's Seat - incl. Height Adjust |
●
|
●
|
●
|
-
|
-
|
-
|
-
|
Power Driver's Seat plus Driver's Seat Height Adiust |
-
|
-
|
-
|
●
|
●
|
-
|
-
|
2-way Power Lumbar Support - Driver's Seat |
-
|
-
|
-
|
●
|
●
|
●
|
●
|
Power Memory Driver's Seat with Power Front Passenger Seat |
-
|
-
|
-
|
-
|
-
|
●
|
●
|
Rear Seat Centre Armrest with Cup Holder |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
60:40 Split Folding Rear Seats |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Remote Folding 2nd Row Seats |
-
|
-
|
-
|
●
|
●
|
●
|
●
|
Height Adjustable Headrests (All Seats) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Height Adjustable Front Seatbelts |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Driver & Front Passenger's Seat Back Pocket |
●
|
●
|
●
|
-
|
-
|
-
|
-
|
Driver & Front Seat Back Panel with Pocket |
-
|
-
|
-
|
●
|
●
|
●
|
●
|
3-stage Heated Front Seats |
-
|
-
|
-
|
●
|
●
|
●
|
●
|
3-stage Ventilated Front Seats |
-
|
-
|
-
|
-
|
-
|
●
|
●
|
Bulb Interior Lights (Front & Rear) |
●
|
●
|
●
|
●
|
●
|
-
|
-
|
LED Interior Lights (Front & Rear) |
-
|
-
|
-
|
-
|
-
|
●
|
●
|
Alloy Pedals |
-
|
-
|
-
|
-
|
-
|
●
|
●
|
Inside Door Handle |
Metal Paint Finish
|
Metal Paint Finish
|
Metal Paint Finish
|
Satin Chrome Finish
|
Satin Chrome Finish
|
Satin Chrome Finish
|
Satin Chrome Finish
|
Centre Fascia Main Pattern |
Metal Paint Finish
|
Metal Paint Finish
|
Metal Paint Finish
|
Metail Paint + PAD Finish
|
Metail Paint + PAD Finish
|
Hydro Graphics Finish
|
Hydro Graphics Finish
|
Centre Console Storage Box |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Sliding Sun Visors with Illuminated Vanity Mirrors |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Luggage Screen |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Luggage Under Tray |
-
|
●
|
●
|
-
|
-
|
-
|
-
|
Luggage Net |
-
|
-
|
-
|
-
|
-
|
●
|
●
|
Luggage Net Hook |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
4.2" Colour LCD Multifunction Instrument Cluster |
●
|
●
|
●
|
●
|
●
|
-
|
-
|
12.3" Colour LCD Supervision Instrument Cluster |
-
|
-
|
-
|
-
|
-
|
●
|
●
|
12.3" Colour Touchscreen Infotainment System |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Built-in Satellite Navigation |
-
|
-
|
-
|
●
|
●
|
●
|
●
|
6 Speaker Audio System |
●
|
●
|
●
|
●
|
●
|
-
|
-
|
Head-up Display (Windshield Projected) |
-
|
-
|
-
|
-
|
-
|
●
|
●
|
Harman Kardon® Premium Sound System with 8 Speakers |
-
|
-
|
-
|
-
|
-
|
●
|
●
|
Android Auto™ & Apple Carplay™ |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Kia Connect (Connect Car Service) + Over-The-Air (OTA) Updates |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Bluetooth® with Voice Recognition Functionality |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
1 x USB-C Type Media & Charging Port |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
2 × 12 Volt Power Outlets (1 × Floor Console & 1 × Cargo Area) |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
1 × USB-C Type Charge Port - Front Tray |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
2 × USB Chargers (On Outside Rear of Centre Console) |
●
|
●
|
●
|
-
|
-
|
-
|
-
|
2 × USB Chargers (On Driver & Front Passenger's Seatback Side) |
-
|
-
|
-
|
●
|
●
|
●
|
●
|
Wireless Smartphone Fast Charging (Qi) |
-
|
-
|
-
|
●
|
●
|
●
|
●
|
Interior Ambient Mood Lighting |
-
|
-
|
-
|
●
|
●
|
●
|
●
|
Steering Wheel Mounted Audio & Cruise Controls |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Smart Cruise Control (SCC) with Stop & Go |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Smart Proximity Key with Engine Start / Stop Button |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Remote Central Locking |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Manual Climate Control |
●
|
-
|
-
|
-
|
-
|
-
|
-
|
Dual Zone Automatic Climate Control |
-
|
●
|
●
|
●
|
●
|
●
|
●
|
Auto Window Defog System |
-
|
●
|
●
|
●
|
●
|
●
|
●
|
Rear Console Ventilation Duct |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Rear Seat Heating Duct |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Drive Mode Select |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Electrochromic Rear View Mirror |
-
|
-
|
-
|
●
|
●
|
●
|
●
|
Low Washer Fluid Warning |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Remote Smart Parking Assist (RSPA) - Forward / Side / Reverse |
-
|
-
|
-
|
-
|
-
|
●
|
●
|
Smart Power Tailgate (Height Adjustable) |
-
|
-
|
-
|
●
|
●
|
●
|
●
|
Hood Insulator |
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Rain Sensing Wipers |
-
|
●
|
●
|
●
|
●
|
●
|
●
|
Overall Length |
4.685 mm
|
4.685 mm
|
4.685 mm
|
4.685 mm
|
4.685 mm
|
4.685 mm
|
4.685 mm
|
Overall Width |
1,865 mm
|
1,865 mm
|
1,865 mm
|
1,865 mm
|
1,865 mm
|
1,865 mm
|
1,865 mm
|
Overall Height (including roof rails) |
1.665 mm
|
1.665 mm
|
1.665 mm
|
1.665 mm
|
1.665 mm
|
1.680 mm
|
1.680 mm
|
Wheelbase |
2,755 mm
|
2,755 mm
|
2,755 mm
|
2,755 mm
|
2,755 mm
|
2,755 mm
|
2,755 mm
|
Minimum Ground Clearance |
181 mm
|
181 mm
|
181 mm
|
181 mm
|
181 mm
|
181 mm
|
181 mm
|
Tare Weight |
1,619 kg
|
1.702 kg
|
1,762 kg
|
1.702 kg
|
1,762 kg
|
1.702 kg
|
1,762 kg
|
Cargo Capacity - Rear Seats Up / Down (VDA) |
543 L / 1,829 L
|
633 L / 1,919 L
|
633 L / 1.919 L
|
586 L / 1,872 L
|
586 L / 1,872 L
|
586 L / 1,872 L
|
586 L / 1,872 L
|
Fuel Tank Capacity |
52L
|
52L
|
52L
|
52L
|
52L
|
52L
|
52L
|
Towing Capacity - Braked / Unbraked |
1,650 kg / 750 kg
|
1,650 kg / 750 kg
|
1,900 kg / 750 kg
|
1,650 kg / 750 kg
|
1,900 kg / 750 kg
|
1,650 kg / 750 kg
|
1,900 kg / 750 kg
|
Maximum Towball Download |
100 kg
|
100 kg
|
100 kg
|
100 kg
|
100 kg
|
100 kg
|
100 kg
|
