Kia Tasman

Open

Range & Specifications

TX 4WD

$52,690 +ORC

TXR 4WD

$58,690 +ORC

TXS 4WD

$62,690 +ORC

X-Line 4WD

$69,690 +ORC

X-Pro 4WD

$79,690 +ORC

TX 4WD

$52,690 +ORC

TXR 4WD

$58,690 +ORC

TXS 4WD

$62,690 +ORC

X-Line 4WD

$69,690 +ORC

X-Pro 4WD

$79,690 +ORC

Dual Cab Wellside (Pick-up) Ute
●
●
●
●
●

Engine
SmartStream In-line 4 Cyl. 2.2CRDi (Common Rail Turbo Diesel)
SmartStream In-line 4 Cyl. 2.2CRDi (Common Rail Turbo Diesel)
SmartStream In-line 4 Cyl. 2.2CRDi (Common Rail Turbo Diesel)
SmartStream In-line 4 Cyl. 2.2CRDi (Common Rail Turbo Diesel)
SmartStream In-line 4 Cyl. 2.2CRDi (Common Rail Turbo Diesel)

Displacement (cc)
2,151 cc
2,151 cc
2,151 cc
2,151 cc
2,151 cc

Compression Ratio
16.0 : 1
16.0 : 1
16.0 : 1
16.0 : 1
16.0 : 1

Max. Power (kW @ rpm)
154 kW @ 3,800 rpm
154 kW @ 3,800 rpm
154 kW @ 3,800 rpm
154 kW @ 3,800 rpm
154 kW @ 3,800 rpm

Max. Torque (Nm @ rpm)
440 Nm @ 1,750 - 2,750 rpm
440 Nm @ 1,750 - 2,750 rpm
440 Nm @ 1,750 - 2,750 rpm
440 Nm @ 1,750 - 2,750 rpm
440 Nm @ 1,750 - 2,750 rpm

Fuel Consumption (L/100km) - 3P-WLTP Converted
8.7L / 100km
8.7L / 100km
8.7L / 100km
9.0L / 100km
9.3L / 100km

CO2 Emissions (g/km) - 3P-WLTP Converted
230g / km
230g / km
230g / km
237g / km
245g / km

Gearbox
8 Speed Automatic (Torque Converter)
8 Speed Automatic (Torque Converter)
8 Speed Automatic (Torque Converter)
8 Speed Automatic (Torque Converter)
8 Speed Automatic (Torque Converter)

Shift Controller Type
Conventional Gear Shifter
Conventional Gear Shifter
Conventional Gear Shifter
Column-Mounted e-Shift 'Shift-By-Wire' (SBW)
Column-Mounted e-Shift 'Shift-By-Wire' (SBW)

Drivetrain
Four Wheel Drive (4WD) with selectable 2H (2WD High), 4H (4WD High), 4A (4WD 'Auto'), 4L (4WD Low Range Gear)
Four Wheel Drive (4WD) with selectable 2H (2WD High), 4H (4WD High), 4A (4WD 'Auto'), 4L (4WD Low Range Gear)
Four Wheel Drive (4WD) with selectable 2H (2WD High), 4H (4WD High), 4A (4WD 'Auto'), 4L (4WD Low Range Gear)
Four Wheel Drive (4WD) with selectable 2H (2WD High), 4H (4WD High), 4A (4WD 'Auto'), 4L (4WD Low Range Gear)
Four Wheel Drive (4WD) with selectable 2H (2WD High), 4H (4WD High), 4A (4WD 'Auto'), 4L (4WD Low Range Gear)

Mechanical Locking Differential (m-LD)
●
●
●
●
-

Electromechanical Locking Differential (e-LD)
-
-
-
-
●

Drive Mode Select System (DMS)
●
●
●
●
●

Terrain Mode Select - Snow / Sand / Mud
●
●
●
●
-

Terrain Mode Select - Snow / Sand / Mud / Rock
-
-
-
-
●

X-TREK Mode (Low Speed Offroad Cruise Control 'Crawl' Mode)
-
-
-
-
●

Front Suspension
Double Wishbone Independent Suspension
Double Wishbone Independent Suspension
Double Wishbone Independent Suspension
Double Wishbone Independent Suspension
Double Wishbone Independent Suspension

Rear Suspension
Rigid Leaf Spring & Solid Beam Axle
Rigid Leaf Spring & Solid Beam Axle
Rigid Leaf Spring & Solid Beam Axle
Rigid Leaf Spring & Solid Beam Axle
Rigid Leaf Spring & Solid Beam Axle

Tyres/Wheels
265/65 R17
265/65 R17
265/60 R18
265/60 R18
265/70 R17

Wheels Size / Type

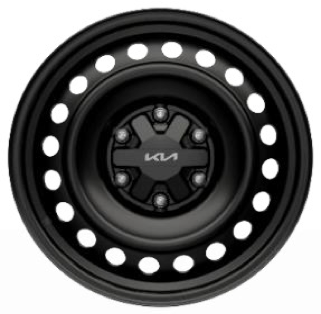

17" steel

17 inch steel

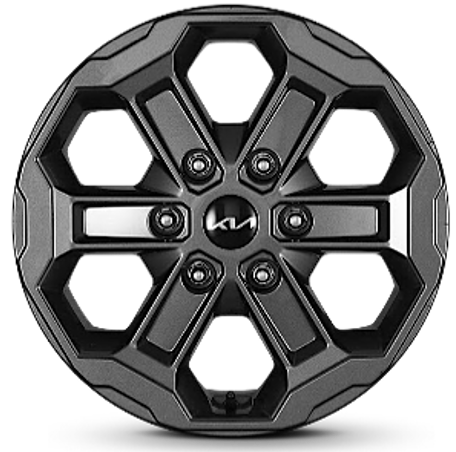

17" alloy

17 inch alloy

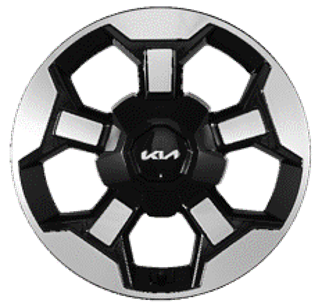

18" alloy

18 inch alloy

18" alloy

18 inch alloy

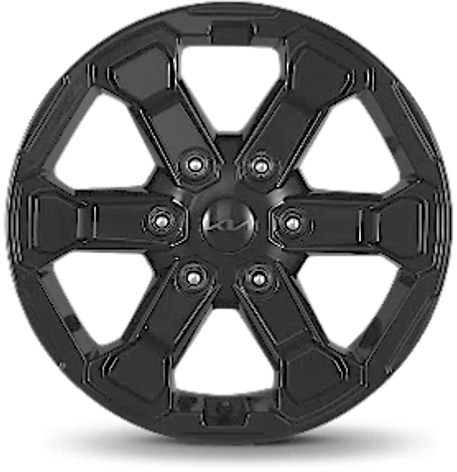

17" alloy (black)

17 inch alloy black

Tyre Pressure Monitoring System (TPMS)
●
●
●
●
●

Spare Wheel Type
Full Size Steel
Full Size Alloy
Full Size Alloy
Full Size Alloy
Full Size Alloy

Braking System
325 mm Ventilated Front Discs & 325 mm Ventilated Rear Discs
325 mm Ventilated Front Discs & 325 mm Ventilated Rear Discs
325 mm Ventilated Front Discs & 325 mm Ventilated Rear Discs
325 mm Ventilated Front Discs & 325 mm Ventilated Rear Discs
325 mm Ventilated Front Discs & 325 mm Ventilated Rear Discs

Electronic Parking Brake with Auto Hold
●
●
●
●
●

Steering System
Column-mounted Motor Driven Power Steering (C-MDPS)
Column-mounted Motor Driven Power Steering (C-MDPS)
Column-mounted Motor Driven Power Steering (C-MDPS)
Column-mounted Motor Driven Power Steering (C-MDPS)
Column-mounted Motor Driven Power Steering (C-MDPS)

Minimum Turning Radius
6.17 m
6.17 m
6.17 m
6.25 m
6.25 m

Steering Wheel Adjustment
Tilt and Telescopic
Tilt and Telescopic
Tilt and Telescopic
Tilt and Telescopic
Tilt and Telescopic

Safety Rating
ANCAP Rating TBC
ANCAP Rating TBC
ANCAP Rating TBC
ANCAP Rating TBC
ANCAP Rating TBC

Anti-lock Braking System (ABS)
●
●
●
●
●

Electronic Stability Control (ESC)
●
●
●
●
●

Multi Collision Brake (MCB)
●
●
●
●
●

Trailer Stability Assist (TSA)
●
●
●
●
●

Integrated Trailer Brake Controller (i-TBC)
●
●
●
●
●

Hill Start Assist Control (HAC)
●
●
●
●
●

Hill Descent Control (DBC)
●
●
●
●
●

Emergency Stop Signal (ESS)
●
●
●
●
●

Forward Collision Avoidance Assist (FCA) - Car/Pedestrian/Cyclist/Junction
●
●
●
●
●

Blind Spot Collision Avoidance Assist (BCA)
●
●
●
●
●

Rear Cross Traffic Collision Avoidance Assist (RCCA)
●
●
●
●
●

Lane Keep Assist System (LKAS)
●
●
●
●
●

Lane Follow Assist (LFA)
●
●
●
●
●

Blind Spot View Monitor (BVM)
-
-
-
●
●

Parking Collision Avoidance Assist (PCA) - Reverse
-
-
-
●
●

e-Call (SOS Call) function
●
●
●
●
●

Highway Driving Assist (HDA)
-
●
●
●
●

Driver Attention Alert (DAA) with Driver In Cabin Status Monitor - Camera
●
●
●
●
●

Manual Speed Limit Assist (MSLA)
●
●
●
●
●

Intelligent Speed Limit Assist (ISLA)
●
●
●
●
●

High Beam Assist (HBA)
●
●
●
●
●

Front Driver and Passenger Airbags
●
●
●
●
●

Front Side Airbags
●
●
●
●
●

Curtain Airbags (1st and 2nd row)
●
●
●
●
●

Front Centre Side Airbag
●
●
●
●
●

Front Seat Pretensions with Load Limiters
●
●
●
●
●

3-Point ELR Seatbelts on all seats
●
●
●
●
●

Seatbelt Reminders for all seats
●
●
●
●
●

Child Restraint Anchorage Points (2x Top Tether & 2x ISOFIX / i-Size)
●
●
●
●
●

Safe Exit Warning (SEW)
●
●
●
●
●

Rear Seat Occupant Alert
●
●
●
●
●

Speed Sensing Auto Door Lock

●
●
●
●
●

Manual Child Safety Rear Door Locks
●
●
●
●
●

Engine Immobiliser
●
●
●
●
●

Parking Sensors
Front & Rear
Front & Rear
Front & Rear
Front, Side & Rear
Front, Side & Rear

Rearview Camera with Dynamic Guidelines
●
●
●
●
●

Surround View Monitor (SVM)
-
-
-
●
●

Remote Smart Park Assist (RSPA)
-
-
-
●
●

LED Headlights (MFR Type)
●
●
●
-
-

LED Headlights (Projection Type)
-
-
-
●
●

Auto Light Control
●
●
●
●
●

LED Daytime Running Lights (DRL)
●
●
●
●
●

LED Combination Taillights
●
●
●
●
●

LED Front Fog Lights
-
-
●
●
●

LED Rear Fog Lamps
●
●
●
●
●

Front & Rear Side Indicators
Halogen Bulb Type
Halogen Bulb Type
LED Type
LED Type
●

Tailgate Mounted Stop Light
●
●
●
●
●

Roof Rails (Bridge Type)
-
-
-
●
●

Side Mirror Folding Function
Manual Folding
Electric Folding
Electric Folding
Electric Folding
●

Electrically Adjustable Side Mirrors with Heated function
●
●
●
●
●

Outside Mirror Puddle Lamp
-
-
-
●
●

Body Coloured Exterior Door Handles
●
●
●
●
●

Front and Rear Mudguards
-
-
●
●
●

Side Door Garnish
-
-
●
●
●

Body Coloured Fender Flares (Clear White & Tan Beige Exterior Colours only)
$220
$220
$220
$220
$220

Right Rear In-Fender Storage (6.3L Capacity)
-
-
-
●
(Not available when choosing the optional body coloured fender flares)
●
(Not available when choosing the optional body coloured fender flares)

Rear Bumper Corner Step
●
●
●
●
●

Rear Tray Bed Liner
-
-
●
●
●

Rear Tray Bed LED Lighting (Combined with the Bed Liner)
-
-
●
●
●

Rear Bed Tie-Down Hooks x4
●
●
●
●
●

Rear Bed Adjustable Rail & Cleat x2
-
-
-
●
●

1x 240V AC Power Outlet Plug (Rear Tray Side)
-
-
●
●
●

Acoustic Film (Windshield)
-
-
-
●
●

Solar Glass (Windshield & Front Door)
-
-
●
●
●

Privacy Glass (Rear Windows & Tailgate)
-
-
-
●
●

Laminated Front Door Glass
-
-
-
●
●

Aero Blade Front Wipers
●
●
●
●
●

Seating Configuration
5 Seats
5 Seats
5 Seats
5 Seats
5 Seats

Interior Seat Trim
Cloth
Cloth
Cloth & Composite Leather
Composite Leather
Composite Leather

Composite Leather 4-Spoke Steering Wheel

●
●
●
●
●

Steering Wheel Paddle Shifters
-
-
-
●
●

Heated Steering Wheel
-
-
-
-
●

6-Way Manual Driver Seat Incl. Height Adjust (Pumping Device)
●
●
●
-
-

8-Way Power Driver's Seat (Incl. 2-Way Power Lumbar Support)
-
-
-
●
●
(With Memory Function)

4-Way Manual Front Passenger's Seat
●
●
-
-
-

6-Way Manual Front Passenger's Seat Incl. Height Adjust (Pumping Device)
-
-
●
●
-

8-Way Power Front Passenger's Seat (Incl. 2-Way Power Lumbar Support )
-
-
-
-
●

2nd Row Passenger Walk-In Device (on Front Passenger Seatback Side)
-
-
-
-
●

Seatback (60:40) Split Folding Backrest & Lower Cushion Tip-up
●
●
●
●
●

2nd Row Seats Manual Sliding & Reclining Function
-
-
-
●
●

2nd Row Centre Armrest with Cup Holder
-
-
-
●
●

Front Seat Headrests Adjustment (Up/Down/Sliding)
●
●
●
●
●

Height Adjustable Headrests (All Seats)
●
●
●
●
●

Height Adjustable Front Seatbelts
●
●
●
●
●

3-Stage Heated Front Seats
-
-
-
●
●

3-Stage Ventilated Front Seats
-
-
-
-
●

3-Stage Heated Rear Seats (2nd Row Outer Seats)
-
-
-
-
●

Driver & Front Passenger Seat Back With Pocket
●
●
●
-
-

Driver & Front Passenger Seat Back Panel With Pocket
-
-
-
●
●

Front Passenger's Side Centre Garnish Storage (Above Glove Box)
-
-
-
●
●

Centre Console Storage Box
●
●
●
●
●

Centre Console Lid Folding Table Feature
-
-
-
●
●

2nd Row Seat Under Tray Storage (45L)
●
●
●
●
●

1st & 2nd Row Interior Grip Handles
●
●
●
●
●

Interior Mood Lighting
-
-
●
●
●

LED Interior Lights (Front & Rear)
●
●
●
●
●

Alloy Pedals
-
-
-
●
●

Inside Door Handle - Metal Paint
●
●
●
●
●

Door Scuff
Standard Type
Standard Type
Standard Type
Deluxe Type
Deluxe Type

12.3" Colour TFT-LCD Supervision Instrument Cluster
●
●
●
●
●

12.3" Colour TFT-LCD Touchscreen Infotainment System
●
●
●
●
●

Built-in Satellite Navigation
-
●
●
●
●

Kia Connect - Connected Car Service (CCS)
●
●
●
●
●

Over-The-Air (OTA) Software Updates
●
●
●
●
●

Trailer Mode Page & Menus
●
●
●
●
●

X-Pro exclusive off-road dedicated Page incl. Ground View Monitor (GVM)
-
-
-
-
●

6 Speaker Audio System
●
●
●
●
-

8 Speaker harman/kardon® Premium Sound System
-
-
-
-
●

Android Auto™ & Apple Carplay ™
●
●
●
●
●

Bluetooth® Multi-connection functionality
●
●
●
●
●

Shark Fin Antenna
●
●
●
●
●

1x 240V AC Power Outlet Plug (Inside Rear of Centre Console)
-
-
●
●
●

1x 12v Power Outlet - Centre Console Storage
●
●
●
●
●

2x 1st row USB Ports
●
●
●
●
●

2x Additional 1st row USB Chargers (Top of Dashboard)
-
-
-
●
●

2x 2nd row USB Chargers (1x each Front Seat-side)
-
-
-
●
●

Wireless Phone Fast Charing (Qi) - Front Tray
-
-
Single Charger
Dual Charger
Dual Charger

Steering Wheel Mounted Audio & Cruise Controls
●
●
●
●
●

Smart Cruise Control (SCC) with Stop & Go
●
●
●
●
●

Dual Zone Automatic Climate Control
●
●
●
●
●

Centre Console Rear Air Vents
-
-
●
●
●

Rear Seat Heating Duct
●
●
●
●
●

Auto Window Defog System
-
-
●
●
●

Smart Key & Push Button Start
●
●
●
●
●

Remote Central Locking
●
●
●
●
●

Single Power Sunroof with Safety
-
-
-
-
●

Front & Rear Power Windows
●
●
●
●
●

Auto Up/Down Safety Windows
Drivers Only
Front Windows
Front Windows
Front Windows
Front Windows

Electrochromic Rear View Mirror
-
-
●
●
●

Sliding Sun Visors with Illuminated Vanity Mirrors
●
●
●
●
●

Rain Sensing Front Wipers
-
-
●
●
●

Low Washer Fluid Warning
●
●
●
●
●

Overall Length (mm)
5,410 mm
5,410 mm
5,410 mm
5,410 mm
5,410 mm

Overall Width (mm)
1,930 mm
1,930 mm
1,930 mm
1,930 mm
1,930 mm

Overall Height (mm)
1,870 mm
1,870 mm
1,870 mm
1,890 mm
1,920 mm

Wheelbase (mm)
3,270 mm
3,270 mm
3,270 mm
3,270 mm
3,270 mm

Minimum Ground Clearance (mm)
206 mm (ANCAP Bumper)
206 mm (ANCAP Bumper)
206 mm (ANCAP Bumper)
224 mm
252 mm

Approach Angle / Break Over (Ramp) Angle / Departure Angle (°)
20.0° / 23.7° / 25.0° (ANCAP Bumper)
20.0° / 23.7° / 25.0° (ANCAP Bumper)
20.0° / 23.7° / 25.0° (ANCAP Bumper)
29.8° / 23.7° / 25.0°
32.2° / 25.8° / 26.2°

Wading Depth (mm)
800 mm
800 mm
800 mm
800 mm
800 mm

Wellside Interior (Lower) Length (mm)
1,573 mm
1,573 mm
1,512 mm
1,512 mm
1,512 mm

Wellside Interior Maximum Width (mm)
1,600 mm
1,600 mm
1,572 mm
1,572 mm
1,572 mm

Wellside Interior Width Between Arches (mm)
1,194 mm
1,194 mm
1,186 mm
1,186 mm
1,186 mm

Wellside Interior Height (mm)
543 mm
543 mm
540 mm
540 mm
540 mm

Maximum Tray Load Volume (L, VDA)
1,212 L
1,212 L
1,173 L
1,173 L
1,173 L

Maximum Tray Payload Capacity (kg)
(TBC)
(TBC)
TBC
TBC
TBC

Fuel tank capacity (L)
80 L
80 L
80 L
80 L
80 L

Towing Capacity - Braked / Unbraked (kg)

3,500 kg / 750 kg
3,500 kg / 750 kg
3,500 kg / 750 kg
3,500 kg / 750 kg
3,500 kg / 750 kg

Max. towball download (kg)

350 kg
350 kg
350 kg
350 kg
350 kg

Tare Weight (kg)
2,225 kg
2,225 kg
2,225 kg
2,223 kg
2,238 kg

Gross Vehicle Mass (kg)
3,250 kg
3,250 kg
3,250 kg
3,250 kg
3,250 kg

Gross Combined Mass (kg)
6,200 kg
6,200 kg
6,200 kg
6,200 kg
6,200 kg
Complete detailed specifications are available in our brochure
Download brochure

Not all features are available on all models, for full details of model specification please see the Range and Specifications page
