Kia Sorento

Range & Specifications

LX AWD Diesel

Diesel

$59,990

EX AWD Diesel

Diesel

$63,990

Deluxe AWD Diesel

Diesel

$69,990

Premium AWD Diesel

Diesel

$76,990

Hybrid 2WD EX

Parallel Hybrid Drive

$63,990

Hybrid 2WD Premium

Parallel Hybrid Drive

$80,990

Hybrid AWD EX

Parallel Hybrid Drive

$65,990

Hybrid AWD Premium

Parallel Hybrid Drive

$82,990

Plug-in Hybrid AWD EX

Parallel Hybrid Drive

$73,990

Plug-in Hybrid AWD Premium

Parallel Hybrid Drive

$89,990

LX AWD Diesel	EX AWD Diesel	Deluxe AWD Diesel	Premium AWD Diesel	Hybrid 2WD EX	Hybrid 2WD Premium	Hybrid AWD EX	Hybrid AWD Premium	Plug-in Hybrid AWD EX	Plug-in Hybrid AWD Premium
LX AWD Diesel Diesel $59,990 +ORC	EX AWD Diesel Diesel $63,990 +ORC	Deluxe AWD Diesel Diesel $69,990 +ORC	Premium AWD Diesel Diesel $76,990 +ORC	Hybrid 2WD EX Parallel Hybrid Drive $63,990 +ORC	Hybrid 2WD Premium Parallel Hybrid Drive $80,990 +ORC	Hybrid AWD EX Parallel Hybrid Drive $65,990 +ORC	Hybrid AWD Premium Parallel Hybrid Drive $82,990 +ORC	Plug-in Hybrid AWD EX Parallel Hybrid Drive $73,990 +ORC	Plug-in Hybrid AWD Premium Parallel Hybrid Drive $89,990 +ORC
Engine Type
2.2L DOHC CRDi Turbo Diesel	2.2L DOHC CRDi Turbo Diesel	2.2L DOHC CRDi Turbo Diesel	2.2L DOHC CRDi Turbo Diesel	1.6L T-GDi Turbo Petrol	1.6L T-GDi Turbo Petrol	1.6L T-GDi Turbo Petrol	1.6L T-GDi Turbo Petrol	1.6L T-GDi Turbo Petrol	1.6L T-GDi Turbo Petrol
Displacement
2,151 cc	2,151 cc	2,151 cc	2,151 cc	1,598 cc	1,598 cc	1,598 cc	1,598 cc	1,598 cc	1,598 cc
Compression Ratio
16.0 : 1	16.0 : 1	16.0 : 1	16.0 : 1	10.5 : 1	10.5 : 1	10.5 : 1	10.5 : 1	10.5 : 1	10.5 : 1
Maximum Power - combined
148 kW @ 3,800 rpm	148 kW @ 3,800 rpm	148 kW @ 3,800 rpm	148 kW @ 3,800 rpm	169 kW	169 kW	169 kW	169 kW	195 kW	195 kW
Maximum Torque - combined
440 Nm @ 1,750 - 2,750 rpm	440 Nm @ 1,750 - 2,750 rpm	440 Nm @ 1,750 - 2,750 rpm	440 Nm @ 1,750 - 2,750 rpm	350 Nm	350 Nm	350 Nm	350 Nm	350 Nm	350 Nm
Fuel Economy - combined cycle
6.1 L / 100 km Figures shown are from standard Australian Design Rules tests (ADR 81/02). Actual results achieved will differ according to operating conditions and driving style.	6.1 L / 100 km Figures shown are from standard Australian Design Rules tests (ADR 81/02). Actual results achieved will differ according to operating conditions and driving style.	6.1 L / 100 km Figures shown are from standard Australian Design Rules tests (ADR 81/02). Actual results achieved will differ according to operating conditions and driving style.	6.1 L / 100 km Figures shown are from standard Australian Design Rules tests (ADR 81/02). Actual results achieved will differ according to operating conditions and driving style.	5.42 L / 100 km Figures shown are from the NEDC test procedure. Actual results achieved will differ according to operating conditions and driving style.	5.42 L / 100 km Figures shown are from the NEDC test procedure. Actual results achieved will differ according to operating conditions and driving style.	6.16 L / 100 km Figures shown are from the NEDC test procedure. Actual results achieved will differ according to operating conditions and driving style.	6.16 L / 100 km Figures shown are from the NEDC test procedure. Actual results achieved will differ according to operating conditions and driving style.	1.6 L / 100 km Figures shown are from the NEDC test procedure. Actual results achieved will differ according to operating conditions and driving style.	1.6 L / 100 km Figures shown are from the NEDC test procedure. Actual results achieved will differ according to operating conditions and driving style.
CO₂ Emissions - combined cycle
159 g / km Figures shown are from standard Australian Design Rules tests (ADR 81/02). Actual results achieved will differ according to operating conditions and driving style.	159 g / km Figures shown are from standard Australian Design Rules tests (ADR 81/02). Actual results achieved will differ according to operating conditions and driving style.	159 g / km Figures shown are from standard Australian Design Rules tests (ADR 81/02). Actual results achieved will differ according to operating conditions and driving style.	159 g / km Figures shown are from standard Australian Design Rules tests (ADR 81/02). Actual results achieved will differ according to operating conditions and driving style.	124 g / km Figures shown are from the NEDC test procedure. Actual results achieved will differ according to operating conditions and driving style.	124 g / km Figures shown are from the NEDC test procedure. Actual results achieved will differ according to operating conditions and driving style.	141 g / km Figures shown are from the NEDC test procedure. Actual results achieved will differ according to operating conditions and driving style.	141 g / km Figures shown are from the NEDC test procedure. Actual results achieved will differ according to operating conditions and driving style.	36 g / km Figures shown are from the NEDC test procedure. Actual results achieved will differ according to operating conditions and driving style.	36 g / km Figures shown are from the NEDC test procedure. Actual results achieved will differ according to operating conditions and driving style.
Hybrid System Type
-	-	-	-	Parallel Hybrid System (Transmission Mounted Electric Device)	Parallel Hybrid System (Transmission Mounted Electric Device)	Parallel Hybrid System (Transmission Mounted Electric Device)	Parallel Hybrid System (Transmission Mounted Electric Device)	Parallel Hybrid System (Transmission Mounted Electric Device)	Parallel Hybrid System (Transmission Mounted Electric Device)
Electric Motor Type
-	-	-	-	Permanent Magnet Synchronous Motor	Permanent Magnet Synchronous Motor	Permanent Magnet Synchronous Motor	Permanent Magnet Synchronous Motor	Permanent Magnet Synchronous Motor	Permanent Magnet Synchronous Motor
Battery Type
-	-	-	-	Lithium-ion Polymer	Lithium-ion Polymer	Lithium-ion Polymer	Lithium-ion Polymer	Lithium-ion Polymer	Lithium-ion Polymer
Battery Water Cooling System
-	-	-	-	-	-	-	-	●	●
Battery Voltage
-	-	-	-	270 V	270 V	270 V	270 V	360 V	360 V
Battery Energy
-	-	-	-	1.5 kWh	1.5 kWh	1.5 kWh	1.5 kWh	13.8 kWh	13.8 kWh
Maximum Range in EV Mode
-	-	-	-	-	-	-	-	Up to 57 km Maximum driving range is per the World Harmonised Light Vehicles Test Procedure (WLTP). Actual results achieved will differ according to operating conditions and driving style.	Up to 57 km Maximum driving range is per the World Harmonised Light Vehicles Test Procedure (WLTP). Actual results achieved will differ according to operating conditions and driving style.
Battery Capacity
-	-	-	-	5.5 Ah	5.5 Ah	5.5 Ah	5.5 Ah	38.3 Ah	38.3 Ah
Charging Cable Type
-	-	-	-	-	-	-	-	1) Type 2 'Mennekes' charging cable with In-cable Control Box (ICCB) with Type 1 plug for standard NZ 3-pin household socket 2) Type 2 to Type 2 'Mennekes' AC charging cable	1) Type 2 'Mennekes' charging cable with In-cable Control Box (ICCB) with Type 1 plug for standard NZ 3-pin household socket 2) Type 2 to Type 2 'Mennekes' AC charging cable
Shift Controller Type
Conventional Gear Knob	Conventional Gear Knob	Conventional Gear Knob	E-Shift Dial (Shift-By-Wire)	E-Shift Dial (Shift-By-Wire)	E-Shift Dial (Shift-By-Wire)	E-Shift Dial (Shift-By-Wire)	E-Shift Dial (Shift-By-Wire)	E-Shift Dial (Shift-By-Wire)	E-Shift Dial (Shift-By-Wire)
Gearbox
8-speed Dual Clutch Transmission (Wet-type)	8-speed Dual Clutch Transmission (Wet-type)	8-speed Dual Clutch Transmission (Wet-type)	8-speed Dual Clutch Transmission (Wet-type)	6-speed Automatic	6-speed Automatic	6-speed Automatic	6-speed Automatic	6-speed Automatic	6-speed Automatic
Drivetrain
Active All Wheel Drive (Part-time with lock mode)	Active All Wheel Drive (Part-time with lock mode)	Active All Wheel Drive (Part-time with lock mode)	Active All Wheel Drive (Part-time with lock mode)	Front Wheel Drive	Front Wheel Drive	Active All Wheel Drive (Part-time with lock mode)	Active All Wheel Drive (Part-time with lock mode)	Active All Wheel Drive (Part-time with lock mode)	Active All Wheel Drive (Part-time with lock mode)
Front Suspension
McPherson Strut	McPherson Strut	McPherson Strut	McPherson Strut	McPherson Strut	McPherson Strut	McPherson Strut	McPherson Strut	McPherson Strut	McPherson Strut
Rear Suspension
Multi-Link	Multi-Link	Multi-Link	Multi-Link	Multi-Link	Multi-Link	Multi-Link	Multi-Link	Multi-Link	Multi-Link
Tyres / Wheels
235 / 65 R17	235 / 60 R18	235 / 55 R19	255 / 45 R20	235 / 65 R17	235 / 55 R19	235 / 65 R17	235 / 55 R19	235 / 55 R19	235 / 55 R19

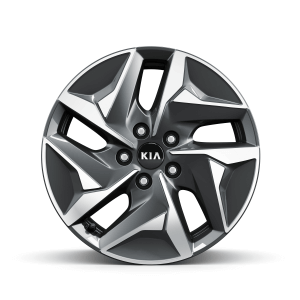

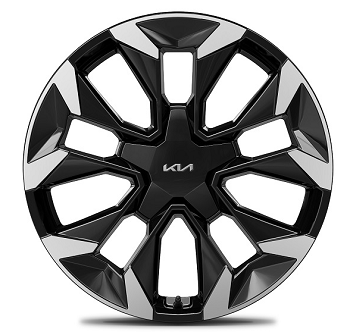

Wheels Size / Type
17" Alloy	18" Alloy	19" Alloy	20" Alloy	17" Alloy	19" Alloy	17" Alloy	19" Alloy	19" Alloy	19" Alloy
Tyre Pressure Monitoring System (TPMS)
●	●	●	●	●	●	●	●	●	●
Spare Wheel Type
Full Size Alloy	Full Size Alloy	Full Size Alloy	Full Size Alloy	Full Size Alloy	Full Size Alloy	Full Size Alloy	Full Size Alloy	Full Size Alloy	Full Size Alloy
Braking System
325 mm Ventilated Front & Rear Discs with ABS, ESC, HAC, DBC, TSA & MCB	325 mm Ventilated Front & Rear Discs with ABS, ESC, HAC, DBC, TSA & MCB	325 mm Ventilated Front & Rear Discs with ABS, ESC, HAC, DBC, TSA & MCB	325 mm Ventilated Front & Rear Discs with ABS, ESC, HAC, DBC, TSA & MCB	325 mm Ventilated Front & Rear Discs with ABS, ESC, HAC, DBC, TSA & MCB	325 mm Ventilated Front & Rear Discs with ABS, ESC, HAC, DBC, TSA & MCB	325 mm Ventilated Front & Rear Discs with ABS, ESC, HAC, DBC, TSA & MCB	325 mm Ventilated Front & Rear Discs with ABS, ESC, HAC, DBC, TSA & MCB	325 mm Ventilated Front & Rear Discs with ABS, ESC, HAC, DBC, TSA & MCB	325 mm Ventilated Front & Rear Discs with ABS, ESC, HAC, DBC, TSA & MCB
Electronic Parking Brake with Auto Hold
●	●	●	●	●	●	●	●	●	●
Steering System
Rack-mounted Motor Driven Power Steering	Rack-mounted Motor Driven Power Steering	Rack-mounted Motor Driven Power Steering	Rack-mounted Motor Driven Power Steering	Rack-mounted Motor Driven Power Steering	Rack-mounted Motor Driven Power Steering	Rack-mounted Motor Driven Power Steering	Rack-mounted Motor Driven Power Steering	Rack-mounted Motor Driven Power Steering	Rack-mounted Motor Driven Power Steering
Paddle Shifters
-	-	●	●	●	●	●	●	●	●
Steering Wheel Adjustment
Tilt & Telescopic	Tilt & Telescopic	Tilt & Telescopic	Tilt & Telescopic	Tilt & Telescopic	Tilt & Telescopic	Tilt & Telescopic	Tilt & Telescopic	Tilt & Telescopic	Tilt & Telescopic
Drive Mode Select
Comfort / Eco / Sport / Smart	Comfort / Eco / Sport / Smart	Comfort / Eco / Sport / Smart	Comfort / Eco / Sport / Smart	Comfort / Eco / Sport / Smart	Comfort / Eco / Sport / Smart	Comfort / Eco / Sport / Smart	Comfort / Eco / Sport / Smart	Comfort / Eco / Sport / Smart	Comfort / Eco / Sport / Smart
Terrain Mode Select
Snow / Mud / Sand	Snow / Mud / Sand	Snow / Mud / Sand	Snow / Mud / Sand	-	-	Snow / Mud / Sand	Snow / Mud / Sand	Snow / Mud / Sand	Snow / Mud / Sand
Minimum Turning Radius
5.8 m	5.8 m	5.8 m	5.8 m	5.8 m	5.8 m	5.8 m	5.8 m	5.8 m	5.8 m
Safety Rating
5 star ANCAP (2020 standard)	5 star ANCAP (2020 standard)	5 star ANCAP (2020 standard)	5 star ANCAP (2020 standard)	5 star ANCAP (2020 standard)	5 star ANCAP (2020 standard)	5 star ANCAP (2020 standard)	5 star ANCAP (2020 standard)	5 star ANCAP (2020 standard)	5 star ANCAP (2020 standard)
Forward Collision Avoidance Assist (FCA) - Car / Pedestrian / Cyclist / Junction
●	●	●	●	●	●	●	●	●	●
Vehicle Stability Management (VSM)
●	●	●	●	●	●	●	●	●	●
Emergency Stop Signal (ESS)
●	●	●	●	●	●	●	●	●	●
Multi-Collision Brake (MCB)
●	●	●	●	●	●	●	●	●	●
Blind Spot Collision Avoidance Assist (BCAA)
●	●	●	●	●	●	●	●	●	●
Rear Cross Traffic Collision Avoidance Assist (RCAA)
●	●	●	●	●	●	●	●	●	●
Lane Keep Assist (LKA) - Line / Road Edge
●	●	●	●	●	●	●	●	●	●
Lane Follow Assist (LFA)
●	●	●	●	●	●	●	●	●	●
Blind Spot View Monitor (BVM)
-	-	●	●	-	●	-	●	-	●
Parking Collision Avoidance Assist (PCA) - Reverse
-	-	-	●	-	●	-	●	-	●
Driver Attention Alert (DAA)
●	●	●	●	●	●	●	●	●	●
Trailer Stability Assist (TSA)
●	●	●	●	●	●	●	●	●	●
Hill-Start Assist Control (HAC)
●	●	●	●	●	●	●	●	●	●
Downhill Brake Control (DBC)
●	●	●	●	●	●	●	●	●	●
Smart High Beam Assist (HBA)
●	●	●	●	●	●	●	●	●	●
7 Airbags
Dual front & side, dual side-curtain and front centre-side	Dual front & side, dual side-curtain and front centre-side	Dual front & side, dual side-curtain and front centre-side	Dual front & side, dual side-curtain and front centre-side	Dual front & side, dual side-curtain and front centre-side	Dual front & side, dual side-curtain and front centre-side	Dual front & side, dual side-curtain and front centre-side	Dual front & side, dual side-curtain and front centre-side	Dual front & side, dual side-curtain and front centre-side	Dual front & side, dual side-curtain and front centre-side
Front Seatbelt Pretensioners / Load Limiters
●	●	●	●	●	●	●	●	●	●
3-point ELR Seatbelts (All Seats)
●	●	●	●	●	●	●	●	●	●
Seatbelt Reminder (All Seats)
●	●	●	●	●	●	●	●	●	●
Child Restraint Anchorage Points
5 x Top Tether / 4 x ISOFIX	5 x Top Tether / 4 x ISOFIX	5 x Top Tether / 4 x ISOFIX	5 x Top Tether / 4 x ISOFIX	4 x Top Tether / 4 x ISOFIX	4 x Top Tether / 4 x ISOFIX	4 x Top Tether / 4 x ISOFIX	4 x Top Tether / 4 x ISOFIX	4 x Top Tether / 4 x ISOFIX	4 x Top Tether / 4 x ISOFIX
Rear Occupant Alert
-	-	●	●	-	●	-	●	-	●
Speed Sensing Auto Door Lock
●	●	●	●	●	●	●	●	●	●
Impact Sensing Auto Door Unlock
●	●	●	●	●	●	●	●	●	●
Child Safety Rear Door Locks
●	●	●	●	●	●	●	●	●	●
Engine Immobiliser
●	●	●	●	●	●	●	●	●	●
Parking Sensors (Front & Rear)
●	●	●	●	●	●	●	●	●	●
Rearview Camera with Dynamic Guidelines
●	●	● with Around View Monitor	● with Around View Monitor	●	● with Around View Monitor	●	● with Around View Monitor	●	● with Around View Monitor
LED Front Headlights
LED (MFR type)	LED (MFR type)	LED (MFR type)	Dual LED (Projection type)	LED (MFR type)	Dual LED (Projection type)	LED (MFR type)	Dual LED (Projection type)	LED (MFR type)	Dual LED (Projection type)
LED Rear Combination Lights
-	-	●	●	-	●	-	●	-	●
LED Daytime Running Lights
●	●	●	●	●	●	●	●	●	●
LED Front & Rear Fog Lights
●	●	●	●	●	●	●	●	●	●
LED High Mounted Brake Light
●	●	●	●	●	●	●	●	●	●
Roof Rails (100 kg limit)
●	●	●	●	●	●	●	●	●	●
Panoramic Power Sunroof
-	-	-	●	-	●	-	●	-	●
Electrically Adjustable Side Mirrors
Folding with LED side indicators	Heated & folding with LED side indicators	Heated & folding with LED side indicators	Heated & folding with LED side indicators	Heated & folding with LED side indicators	Heated & folding with LED side indicators	Heated & folding with LED side indicators	Heated & folding with LED side indicators	Heated & folding with LED side indicators	Heated & folding with LED side indicators
Satin Chrome Coloured Door Handles
●	●	●	●	●	●	●	●	●	●
Front & Rear Mudguards
●	●	●	●	●	●	●	●	●	●
Silver Painted Skid Plate (Front & Rear)
●	●	●	●	●	●	●	●	●	●
Acoustic Film (Windshield)
●	●	●	●	●	●	●	●	●	●
Solar Glass (Windshield & Front Door)
-	●	●	●	●	●	●	●	●	●
Privacy Glass (Rear Windows & Tailgate)
-	●	●	●	●	●	●	●	●	●
Aeroblade Front Wipers
-	●	●	●	●	●	●	●	●	●
Rear Wiper (Hidden type)
●	●	●	●	●	●	●	●	●	●
Seating Configuration
7 seats	7 seats	7 seats	7 seats	7 seats	7 seats	7 seats	7 seats	7 seats	7 seats
Interior Seat Trim
Cloth	Leather Leather appointed seats may comprise of genuine leather, and other man-made leather-like materials or a combination thereof.	Leather Leather appointed seats may comprise of genuine leather, and other man-made leather-like materials or a combination thereof.	Nappa Leather Leather appointed seats may comprise of genuine leather, and other man-made leather-like materials or a combination thereof.	Leather Leather appointed seats may comprise of genuine leather, and other man-made leather-like materials or a combination thereof.	Leather Leather appointed seats may comprise of genuine leather, and other man-made leather-like materials or a combination thereof.	Leather Leather appointed seats may comprise of genuine leather, and other man-made leather-like materials or a combination thereof.	Leather Leather appointed seats may comprise of genuine leather, and other man-made leather-like materials or a combination thereof.	Leather Leather appointed seats may comprise of genuine leather, and other man-made leather-like materials or a combination thereof.	Leather Leather appointed seats may comprise of genuine leather, and other man-made leather-like materials or a combination thereof.
Composite Leather Steering Wheel & Gearshift Knob
● Composite leather consists of a combination of recycled or leftover leather trimmings and Polyurethane (PU)	● Composite leather consists of a combination of recycled or leftover leather trimmings and Polyurethane (PU)	● Composite leather consists of a combination of recycled or leftover leather trimmings and Polyurethane (PU)	● Composite leather consists of a combination of recycled or leftover leather trimmings and Polyurethane (PU).	● Composite leather consists of a combination of recycled or leftover leather trimmings and Polyurethane (PU).	● Composite leather consists of a combination of recycled or leftover leather trimmings and Polyurethane (PU).	● Composite leather consists of a combination of recycled or leftover leather trimmings and Polyurethane (PU).	● Composite leather consists of a combination of recycled or leftover leather trimmings and Polyurethane (PU).	● Composite leather consists of a combination of recycled or leftover leather trimmings and Polyurethane (PU).	● Composite leather consists of a combination of recycled or leftover leather trimmings and Polyurethane (PU).
Heated Steering Wheel
-	●	●	●	●	●	●	●	●	●
Adjustable Driver's Seat
6-way manual with height adjustment pumping device	10-way power with 2-way lumbar support	10-way power with 2-way lumbar support	14-way power with 4-way lumbar support, cushion extension & 2 memory settings	10-way power with 2-way lumbar support	14-way power with 4-way lumbar support, cushion extension & 2 memory settings	10-way power with 2-way lumbar support	14-way power with 4-way lumbar support, cushion extension & 2 memory settings	10-way power with 2-way lumbar support	14-way power with 4-way lumbar support, cushion extension & 2 memory settings
Adjustable Front Passenger's Seat
Manual with height adjustment pumping device	Manual with height adjustment pumping device	Manual with height adjustment pumping device	10-way power with 2-way lumbar support	Manual with height adjustment pumping device	10-way power with 2-way lumbar support	Manual with height adjustment pumping device	10-way power with 2-way lumbar support	Manual with height adjustment pumping device	10-way power with 2-way lumbar support
Second Row Sliding Walk-in Device (Left Side)
●	●	●	●	●	●	●	●	●	●
Sliding & Reclining Second Row Seats (60:40)
●	●	●	●	●	●	●	●	●	●
One-touch Remote Folding Second Row Seat (60:40)
●	●	●	●	●	●	●	●	●	●
Second Row Centre Armrest & Cup Holder
●	●	●	●	●	●	●	●	●	●
Split Fold Flat Second Row Seats (60:40)
●	●	●	●	●	●	●	●	●	●
Split Fold Flat Third Row Seats (50:50)
●	●	●	●	●	●	●	●	●	●
Height Adjustable Headrests (All Seats)
●	●	●	●	●	●	●	●	●	●
Height Adjustable Front Seatbelts
●	●	●	●	●	●	●	●	●	●
Heated & Ventilated Seats
-	3-stage heated front seats	3-stage heated front seats	3-stage heated & ventilated front seats and 2-stage heated rear seats (second row)	3-stage heated front seats	3-stage heated & ventilated front seats and 2-stage heated rear seats (second row)	3-stage heated front seats	3-stage heated & ventilated front seats and 2-stage heated rear seats (second row)	3-stage heated front seats	3-stage heated & ventilated front seats and 2-stage heated rear seats (second row)
Interior Mood Lighting
-	-	●	●	-	●	-	●	-	●
Alloy Foot Pedals
-	-	●	●	-	●	-	●	-	●
Inside Door Handle
Metal paint	Metal paint	ION plating	ION plating	Metal paint	ION plating	Metal paint	ION plating	Metal paint	ION plating
Luggage Screen & Net Hook
●	●	●	●	●	●	●	●	●	●
Audio System
8" colour LCD touchscreen, DAB+ digital radio, MP3 audio player and 6 speakers	10.25" colour LCD touchscreen with split screen function, DAB+ digital radio, MP3 audio player and 6 speakers	10.25" colour LCD touchscreen with split screen function, DAB+ digital radio, MP3 audio player and BOSE® premium 12-speaker sound system	10.25" colour LCD touchscreen with split screen function, DAB+ digital radio, MP3 audio player and BOSE® premium 12-speaker sound system	10.25" colour LCD touchscreen with split screen function, DAB+ digital radio, MP3 audio player and 6 speakers	10.25" colour LCD touchscreen with split screen function, DAB+ digital radio, MP3 audio player and BOSE® premium 12-speaker sound system	10.25" colour LCD touchscreen with split screen function, DAB+ digital radio, MP3 audio player and 6 speakers	10.25" colour LCD touchscreen with split screen function, DAB+ digital radio, MP3 audio player and BOSE® premium 12-speaker sound system	10.25" colour LCD touchscreen with split screen function, DAB+ digital radio, MP3 audio player and 6 speakers	10.25" colour LCD touchscreen with split screen function, DAB+ digital radio, MP3 audio player and BOSE® premium 12-speaker sound system
Apple CarPlay™
● Apple CarPlay™ requires an iPhone 5 or later. It is recommended to always update your iPhone to the latest iOS release. Use the Apple Lightning® cable provided with your phone or an Apple-certified cable.	● Apple CarPlay™ requires an iPhone 5 or later. It is recommended to always update your iPhone to the latest iOS release. Use the Apple Lightning® cable provided with your phone or an Apple-certified cable.	● Apple CarPlay™ requires an iPhone 5 or later. It is recommended to always update your iPhone to the latest iOS release. Use the Apple Lightning® cable provided with your phone or an Apple-certified cable.	● Apple CarPlay™ requires an iPhone 5 or later. It is recommended to always update your iPhone to the latest iOS release. Use the Apple Lightning® cable provided with your phone or an Apple-certified cable.	● Apple CarPlay™ requires an iPhone 5 or later. It is recommended to always update your iPhone to the latest iOS release. Use the Apple Lightning® cable provided with your phone or an Apple-certified cable.	● Apple CarPlay™ requires an iPhone 5 or later. It is recommended to always update your iPhone to the latest iOS release. Use the Apple Lightning® cable provided with your phone or an Apple-certified cable.	● Apple CarPlay™ requires an iPhone 5 or later. It is recommended to always update your iPhone to the latest iOS release. Use the Apple Lightning® cable provided with your phone or an Apple-certified cable.	● Apple CarPlay™ requires an iPhone 5 or later. It is recommended to always update your iPhone to the latest iOS release. Use the Apple Lightning® cable provided with your phone or an Apple-certified cable.	● Apple CarPlay™ requires an iPhone 5 or later. It is recommended to always update your iPhone to the latest iOS release. Use the Apple Lightning® cable provided with your phone or an Apple-certified cable.	● Apple CarPlay™ requires an iPhone 5 or later. It is recommended to always update your iPhone to the latest iOS release. Use the Apple Lightning® cable provided with your phone or an Apple-certified cable.
Android Auto™
● Android Auto™ requires an Android phone with Android 5.0 Lollipop or higher. It is recommended to always update your phone to the latest Android OS release and use the USB cable provided with your phone.	● Android Auto™ requires an Android phone with Android 5.0 Lollipop or higher. It is recommended to always update your phone to the latest Android OS release and use the USB cable provided with your phone.	● Android Auto™ requires an Android phone with Android 5.0 Lollipop or higher. It is recommended to always update your phone to the latest Android OS release and use the USB cable provided with your phone.	● Android Auto™ requires an Android phone with Android 5.0 Lollipop or higher. It is recommended to always update your phone to the latest Android OS release and use the USB cable provided with your phone.	● Android Auto™ requires an Android phone with Android 5.0 Lollipop or higher. It is recommended to always update your phone to the latest Android OS release and use the USB cable provided with your phone.	● Android Auto™ requires an Android phone with Android 5.0 Lollipop or higher. It is recommended to always update your phone to the latest Android OS release and use the USB cable provided with your phone.	● Android Auto™ requires an Android phone with Android 5.0 Lollipop or higher. It is recommended to always update your phone to the latest Android OS release and use the USB cable provided with your phone.	● Android Auto™ requires an Android phone with Android 5.0 Lollipop or higher. It is recommended to always update your phone to the latest Android OS release and use the USB cable provided with your phone.	● Android Auto™ requires an Android phone with Android 5.0 Lollipop or higher. It is recommended to always update your phone to the latest Android OS release and use the USB cable provided with your phone.	● Android Auto™ requires an Android phone with Android 5.0 Lollipop or higher. It is recommended to always update your phone to the latest Android OS release and use the USB cable provided with your phone.
Bluetooth® Multi-connection Functionality
● Not all smartphones/devices may be compatible with the vehicle's Bluetooth® system	● Not all smartphones/devices may be compatible with the vehicle's Bluetooth® system	● Not all smartphones/devices may be compatible with the vehicle's Bluetooth® system	● Not all smartphones/devices may be compatible with the vehicle's Bluetooth® system	● Not all smartphones/devices may be compatible with the vehicle's Bluetooth® system	● Not all smartphones/devices may be compatible with the vehicle's Bluetooth® system	● Not all smartphones/devices may be compatible with the vehicle's Bluetooth® system	● Not all smartphones/devices may be compatible with the vehicle's Bluetooth® system	● Not all smartphones/devices may be compatible with the vehicle's Bluetooth® system	● Not all smartphones/devices may be compatible with the vehicle's Bluetooth® system
Satellite Navigation
-	●	●	●	●	●	●	●	●	●
12V Power Outlets
2 x outlets (1 x behind centre console & 1 x cargo area)	2 x outlets (1 x behind centre console & 1 x cargo area)	2 x outlets (1 x behind centre console & 1 x cargo area)	2 x outlets (1 x behind centre console & 1 x cargo area)	2 x outlets (1 x behind centre console & 1 x cargo area)	2 x outlets (1 x behind centre console & 1 x cargo area)	2 x outlets (1 x behind centre console & 1 x cargo area)	2 x outlets (1 x behind centre console & 1 x cargo area)	2 x outlets (1 x behind centre console & 1 x cargo area)	2 x outlets (1 x behind centre console & 1 x cargo area)
Wireless Smartphone Charging (Qi)
-	-	● Works with Qi compatible smartphones/devices only.	● Works with Qi compatible smartphones/devices only.	● Works with Qi compatible smartphones/devices only.	● Works with Qi compatible smartphones/devices only.	● Works with Qi compatible smartphones/devices only.	● Works with Qi compatible smartphones/devices only.	● Works with Qi compatible smartphones/devices only.	● Works with Qi compatible smartphones/devices only.
Instrument Cluster
4.2" colour TFT supervision instrument cluster	4.2" colour TFT supervision instrument cluster	12.3" colour TFT LCD supervision cluster	12.3" colour TFT LCD supervision cluster	4.2" colour TFT instrument cluster	12.3" colour TFT LCD supervision cluster	4.2" colour TFT instrument cluster	12.3" colour TFT LCD supervision cluster	4.2" colour TFT instrument cluster	12.3" colour TFT LCD supervision cluster
Shark Fin Antenna
●	●	●	●	●	●	●	●	●	●
Steering Wheel Mounted Controls
Audio & cruise control	Audio & cruise control	Audio & cruise control	Audio & cruise control	Audio & cruise control	Audio & cruise control	Audio & cruise control	Audio & cruise control	Audio & cruise control	Audio & cruise control
Advanced Smart Cruise Control (ASCC)
●	●	●	●	●	●	●	●	●	●
USB Charging Ports
3 x USB ports (2 x front console & 1 x behind centre console)	5 x USB ports (2 x front console, 1 x behind centre console, 1 x driver seat back & 1 x front passenger seat back)	7 x USB ports (2 x front console, 1 x behind centre console, 1 x driver seat back, 1 x front passenger seat back & 2 x cargo area)	7 x USB ports (2 x front console, 1 x behind centre console, 1 x driver seat back, 1 x front passenger seat back & 2 x cargo area)	7 x USB ports (2 x front console, 1 x behind centre console, 1 x driver seat back, 1 x front passenger seat back & 2 x cargo area)	7 x USB ports (2 x front console, 1 x behind centre console, 1 x driver seat back, 1 x front passenger seat back & 2 x cargo area)	7 x USB ports (2 x front console, 1 x behind centre console, 1 x driver seat back, 1 x front passenger seat back & 2 x cargo area)	7 x USB ports (2 x front console, 1 x behind centre console, 1 x driver seat back, 1 x front passenger seat back & 2 x cargo area)	7 x USB ports (2 x front console, 1 x behind centre console, 1 x driver seat back, 1 x front passenger seat back & 2 x cargo area)	7 x USB ports (2 x front console, 1 x behind centre console, 1 x driver seat back, 1 x front passenger seat back & 2 x cargo area)
Remote Keyless Entry
●	●	●	●	●	●	●	●	●	●
Remote Central Locking
●	●	●	●	●	●	●	●	●	●
Smart Proximity Key
● with engine start / stop button & remote engine start	● with engine start / stop button & remote engine start	● with engine start / stop button & remote engine start	● with engine start / stop button, remote engine start & Remote Smart Parking Assist (RSPA)	● with engine start / stop button	● with engine start / stop button	● with engine start / stop button	● with engine start / stop button	● with engine start / stop button	● with engine start / stop button
Dual Zone Automatic Climate Control
●	●	●	●	●	●	●	●	●	●
Second & Third Row Heating Duct
●	●	●	●	●	●	●	●	●	●
Third Row Manual Air Conditioning
-	●	●	●	●	●	●	●	●	●
Power Windows (Front & Rear)
● with auto up / down on driver's window only	● with auto up / down on all windows	● with auto up / down on all windows	● with auto up / down on all windows	● with auto up / down on all windows	● with auto up / down on all windows	● with auto up / down on all windows	● with auto up / down on all windows	● with auto up / down on all windows	● with auto up / down on all windows
Auto Window Defogger
●	●	●	●	●	●	●	●	●	●
Auto Welcome Lights
●	●	●	●	●	●	●	●	●	●
Auto Light Control
●	●	●	●	●	●	●	●	●	●
Electrochromic Rearview Mirror
●	●	●	●	●	●	●	●	●	●
Rain Sensing Front Wipers
●	●	●	●	●	●	●	●	●	●
Head-up Display (Windshield type)
-	●	●	●	●	●	●	●	●	●
Multi-Function Trip Computer
●	●	●	●	●	●	●	●	●	●
Smart Power Tailgate (Height Adjustable)
-	-	●	●	-	●	-	●	-	●
Sunvisors with Illuminated Vanity Mirrors
●	●	●	●	●	●	●	●	●	●
Overall Length
4,810 mm	4,810 mm	4,810 mm	4,810 mm	4,810 mm	4,810 mm	4,810 mm	4,810 mm	4,810 mm	4,810 mm
Overall Width
1,900 mm	1,900 mm	1,900 mm	1,900 mm	1,900 mm	1,900 mm	1,900 mm	1,900 mm	1,900 mm	1,900 mm
Overall Height
1,700 mm	1,700 mm	1,700 mm	1,700 mm	1,700 mm	1,700 mm	1,700 mm	1,700 mm	1,700mm	1,700 mm
Wheelbase
2,815 mm	2,815 mm	2,815 mm	2,815 mm	2,815 mm	2,815 mm	2,815 mm	2,815 mm	2,815 mm	2,815 mm
Recommended fuel
Diesel	Diesel	Diesel	Diesel	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol
Minimum Ground Clearance
176 mm	176 mm	176 mm	176 mm	174 mm	174 mm	174 mm	174 mm	174 mm	174 mm
Cargo Capacity - 1st / 2nd / 3rd Row (VDA)
2,011 L / 616 L / 187 L	2,011 L / 616 L / 187 L	2,011 L / 616 L / 187 L	2,011 L / 616 L / 187 L	1,996 L / 608 L / 179 L	1,996 L / 608 L / 179 L	1,996 L / 608 L / 179 L	1,996 L / 608 L / 179 L	1,988 L / 604 L / 175 L	1,988 L / 604 L / 175 L
Towing Capacity
2,500 kg braked / 750 kg unbraked	2,500 kg braked / 750 kg unbraked	2,500 kg braked / 750 kg unbraked	2,500 kg braked / 750 kg unbraked	1,650 kg braked / 750 kg unbraked	1,650 kg braked / 750 kg unbraked	1,650 kg braked / 750 kg unbraked	1,650 kg braked / 750 kg unbraked	1,350 kg braked / 750 kg unbraked	1,350 kg braked / 750 kg unbraked
Tare Weight
1,908 kg	1,908 kg	1,908 kg	1,908 kg	1,942 kg	1,942 kg	2,006 kg	2,006 kg	2,057 kg	2,057 kg
Fuel Tank Capacity
67 L	67 L	67 L	67 L	67 L	67 L	67 L	67 L	47 L	47 L
Scheduled Service Plan
3 years scheduled servicing or up to 100,000 kms (whichever occurs first)	3 years scheduled servicing or up to 100,000 kms (whichever occurs first)	3 years scheduled servicing or up to 100,000 kms (whichever occurs first)	3 years scheduled servicing or up to 100,000 kms (whichever occurs first)	4 years scheduled servicing or up to 40,000 kms (whichever occurs first)	4 years scheduled servicing or up to 40,000 kms (whichever occurs first)	4 years scheduled servicing or up to 40,000 kms (whichever occurs first)	4 years scheduled servicing or up to 40,000 kms (whichever occurs first)	4 years scheduled servicing or up to 40,000 kms (whichever occurs first)	4 years scheduled servicing or up to 40,000 kms (whichever occurs first)
Warranty Programme
Kia Vehicle Warranty 5 years / 100,000 km (whichever occurs first)	Kia Vehicle Warranty 5 years / 100,000 km (whichever occurs first)	Kia Vehicle Warranty 5 years / 100,000 km (whichever occurs first)	Kia Vehicle Warranty 5 years / 100,000 km (whichever occurs first)	Kia Vehicle Warranty 5 years / 100,000 km (whichever occurs first) High Voltage Drive Battery Warranty 7 years / 160,000 km (whichever occurs first)	Kia Vehicle Warranty 5 years / 100,000 km (whichever occurs first) High Voltage Drive Battery Warranty 7 years / 160,000 km (whichever occurs first)	Kia Vehicle Warranty 5 years / 100,000 km (whichever occurs first) High Voltage Drive Battery Warranty 7 years / 160,000 km (whichever occurs first)	Kia Vehicle Warranty 5 years / 100,000 km (whichever occurs first) High Voltage Drive Battery Warranty 7 years / 160,000 km (whichever occurs first)	Kia Vehicle Warranty 5 years / 100,000 km (whichever occurs first) High Voltage Drive Battery Warranty 7 years / 160,000 km (whichever occurs first)	Kia Vehicle Warranty 5 years / 100,000 km (whichever occurs first) High Voltage Drive Battery Warranty 7 years / 160,000 km (whichever occurs first)
Roadside Assistance
Free roadside assistance for the first five years with unlimited kilometres	Free roadside assistance for the first five years with unlimited kilometres	Free roadside assistance for the first five years with unlimited kilometres	Free roadside assistance for the first five years with unlimited kilometres	Free roadside assistance for the first five years with unlimited kilometres	Free roadside assistance for the first five years with unlimited kilometres	Free roadside assistance for the first five years with unlimited kilometres	Free roadside assistance for the first five years with unlimited kilometres	Free roadside assistance for the first five years with unlimited kilometres	Free roadside assistance for the first five years with unlimited kilometres
